UPS AND INVERTOR

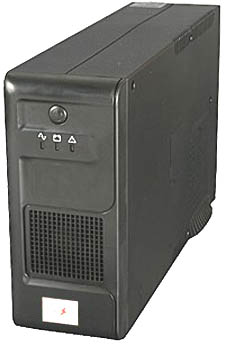

- Line Interactive UPS

  • Wide input range 140-300V
  • Fast Changeover
  • Compact in Size
  • Microcontroller Based design
  • Cold Start
  • Gen set Compatible
  • Green Function (No Load Cut Off)


Specifications

Capacity VA/W

600VA/360W

1000VA/600W

Input Range

140VAC-300VAC

140VAC-300VAC

Input Frequency

>40Hz (Autosensing)

>40Hz (Autosensing)

Output Voltage

230VAC +/-10% RMS

230VAC +/-10% RMS

Output Frequency

50Hz +/-1Hz

50Hz +/-1Hz

Output Waveform

Modified Sinewave

Modified Sinewave

Battery Type

12V/7Ah x 1

12V/7Ah x 2

Backup Time

15-20 min (PC with 15” monitor)

15-20 min (2 PCs with 15” monitor)

Recharge Time

6 hours to 90% after complete discharge

Transfer Time (typical)

4-8 ms

4-8 ms

AC mode

Green Lighting

Green Lighting

Battery mode

Yellow Lighting

Green Flashing

Fault

Red LED lighting

-

Backup mode

Sounding every 10 seconds

Sounding every 10 seconds

Low Battery

Sounding every second

Sounding every second

Overload

Sounding every 0.5 seconds

Sounding every 0.5 seconds

Fault

Continuous sounding

Continuous sounding

Full Protection

Discharge, Overcharge & Overload Protection

Physical dimensions (WxDxH mm)

278 x 100 x 142

Net Weight (kgs)

4.4 Kgs

8.9 Kgs

Operating Environment

0-40C, 0-90%, Relative humidity (non-Condensing)

Noise level

< 40db




























* Specifications subject to change without prior notice.

- Longer Backup UPS

  • Microcontroller based True Digital Inverter
  • Wide input range 90 to 280VAC
  • Intelligent Two Step Battery Charger
  • High Efficiency High Frequency Design
  • Regulated modified sine wave output.
  • Cost Effective solution
  • Ideal for Home/SOHO use with TV, Tube, Fan and PCs
  • High efficient 10Amp SMPS charger in 1200VA/2400VA (3A in 400VA)
  • Up to 200AH battery can be connected in 1200VA/2400VA (65AH in 400VA)
  • Models available=UP TO 20KVA


Specifications

Capacity VA/W

400VA/200W

1200VA/720W

2400VA/1440W

Voltage Range

170-280VAC (Narrow Range)

90-280VAC (Wide Range)

Voltage

230VAC RMS

Voltage Regulation (Bat. Mode)

10% / -18%

Frequency

50Hz or 60Hz

Frequency Regulation (Bat. Mode)

+/-0.1 Hz

Output Waveform

Modified Sine Wave

Charger Current

3 Amp +/- 1Amp

10 Amp +/- 1Amp

10 Amp +/- 1Amp

DC Voltage

12V

12V

24V

Overcharge Protection

15V

15V

30V

Transfer Time (Typical)

20ms Typical

AC to AC

>95%

DC to AC

>80%

AC Mode

Green lighting

Battery Mode

Yellow lighting

Battery Charging Mode

Green flashing every 2 seconds

Overload

Red flashing every 0.5 second

Fault

Red lighting

Low Battery at Battery Mode

Sounding every 2 seconds

Overload

Sounding every 0.5 second

Fault

Continuously Sounding

Full Protection

Discharge, overcharge and overload protection

Dimensions (D x W x H mm)

228 x 82.5 x 207

293 x 82.5 x 231.5

Net Weight (kgs)

1

2.3

2.55

Operating Environment

0-40C, 0-90% Relative humidity (non-condensing)

Noise level

Less than 50dB



- Online UPS - High Frequency

  • True on-line, Zero Transfer Time, dual conversion design.
  • Sine wave pulse width modulation (SPWM).
  • High Frequency Technology used for Higher Efficiency.
  • Wide Input voltage window.
  • Pure sine wave output.
  • Extendable backup time.
  • 5Amp charger, Batteries from 25Ah to 100Ah.
  • 12A super charger bigger batteries can be connected upto 240Ah (6-10-20KVA models ony)
  • Generator compatible and Cold start Feature.
  • EMI/RFI filter.
  • Advanced Battery Management.


Specifications

Capacity VA/W

1KVA / 700W

2KVA / 1400W

3KVA / 2100W

6KVA / 4200W

10KVA / 7000W

20KVA / 14000W

Input



Voltage Range

Full Load : 176V-276 VAC

304/322-461/478VAC

Frequency

46Hz~54Hz

Power Factor

>0.98 @ Full Load

>0.95

Output



Waveform

True Sine Wave

Voltage

230VAC ±2%

230VAC ±1%

Frequency

50Hz +/- 0.2Hz @ Battery Mode, Synchronized @ Mains Mode

50Hz +/- 0.5Hz @ Battery Mode, Synchronized @ Mains Mode

Distortion

THD <4% (Linear Load)

THD <2% (Linear Load)

Power Factor

0.7

Overload Capacity

130% for 1 min @ Mains mode, 10 sec @ Battery Mode, >130% for 1 sec

Efficiency



Mains mode

>86%

89%

>88%

Battery mode

>80%

83%

89%

>88%

Battery



Type

>Sealed Lead-acid, Maintenance Free

Battery Voltage

24Vdc

48Vdc

72Vdc

240Vdc

Charging Voltage

27.3Vdc

54.6Vdc

81.9Vdc

273Vdc

Charging Current

5A

4.2A Built-in charger
12A External Super Charger (optional)

System



Technology

SPWM

Transfer time

0

Display



LED

Low Battery, Online, Inverter, Bypass, Fault Load Level, Battery Level

Communication



RS232 port (Optional)

Protection

Short Circuit, Over Temperature, Battery Low, Output Low, Surge

Audible Noise

<45db @ 1 meter from Front Panel

<55db @ 1 meter

<60db @ 1 meter from Front Panel

Environment



Temperature

0-40°C

Humidity

0-95%

Net Weight (kgs)

5.2

10.8

26

55

Dimensions (DxWxH mm)

220 x 144 x 345

318 x 190 x 369

376 x 200 x 509

570 x 260 x 717

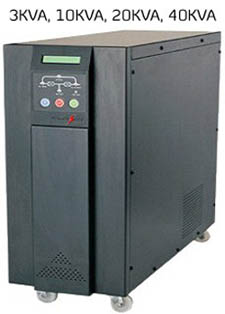

- Online UPS - Low Frequency

Applications: Data processing center, computing center, ISP, Banking

  • True on-line dual conversion design
  • Sine wave pulse width modulation (SPWM)
  • IGBT base inverter design
  • Wide Input voltage window
  • True sine wave output with less than 3% THD
  • With Isolation transformer
  • Extendable backup time
  • 5Amp charger in 3KVA , Batteries from 25Ah to 100Ah
  • 10Amp charger in 10KVA & 20KVA, Batteries from 50Ah to 200Ah
  • Generator compatible and Cold start Feature
  • EMI/RFI filter
  • Advanced Battery Management
  • Zero transfer time
  • RS-232. (Optional SNMP card)


Specifications

PS 3KVA, 10KVA, 20KVA & 40KVA UPS models are ideal for Data processing center, computing center, ISP, Banking

Phase

Single Phase Input, Single Phase Output

Three Phase Input, Single Phase Output

Capacity

2,100W

4,200W

7,000W

7,000W

14,000W

Input Voltage Range

220V +/- 25% (165 to 275V) AC

380V+/-20% (304 to 456V) AC

Input Frequency Range

50Hz +/-5%

Output Waveform

True Sine Wave

Output Voltage

220VAC +/-1%

Output Frequency

50Hz +/-0.5Hz

Distortion

THD <3% (Linear Load)

Power Factor

0.7

Overload Capacity

125% FOR 1 min, 150% FOR 1 Sec,
110%-150% transfer to bypass after 20sec, Short Circuit, Current Limit

BATTERY Type

Sealed Lead Acid, Maintenance-free

Voltage

48V DC

192V DC

Charger Voltage

55V

220V

Charger Current

5 A

10 A

System



Technology

SPWM

Transfer Time

0ms

Efficiency

>85%

Display



LCD

Operating Mode, Input Voltage, Output Voltage, Input Frequency, Output Frequency, Battery Voltage, Load Percentage, UPS Temperature

LED

Low Battery, Online, Inverter, Bypass, Fault

Communication

RS232 port

Protection

Short Circuit, Over Temperature, Battery Low, Output Low, Surge

Audible Noise

<60db (1 meter)

Environment



Temperature

0 to 40C

Humidity

0 to 90%

Net Weight (kgs)

68

66

110

110

245

Dimensions (DxWxH mm)

210 x 580 x 540

230 x 540 x 570

305 x 585 x 870

305 x 585 x 870

430 x 810 x 1100
